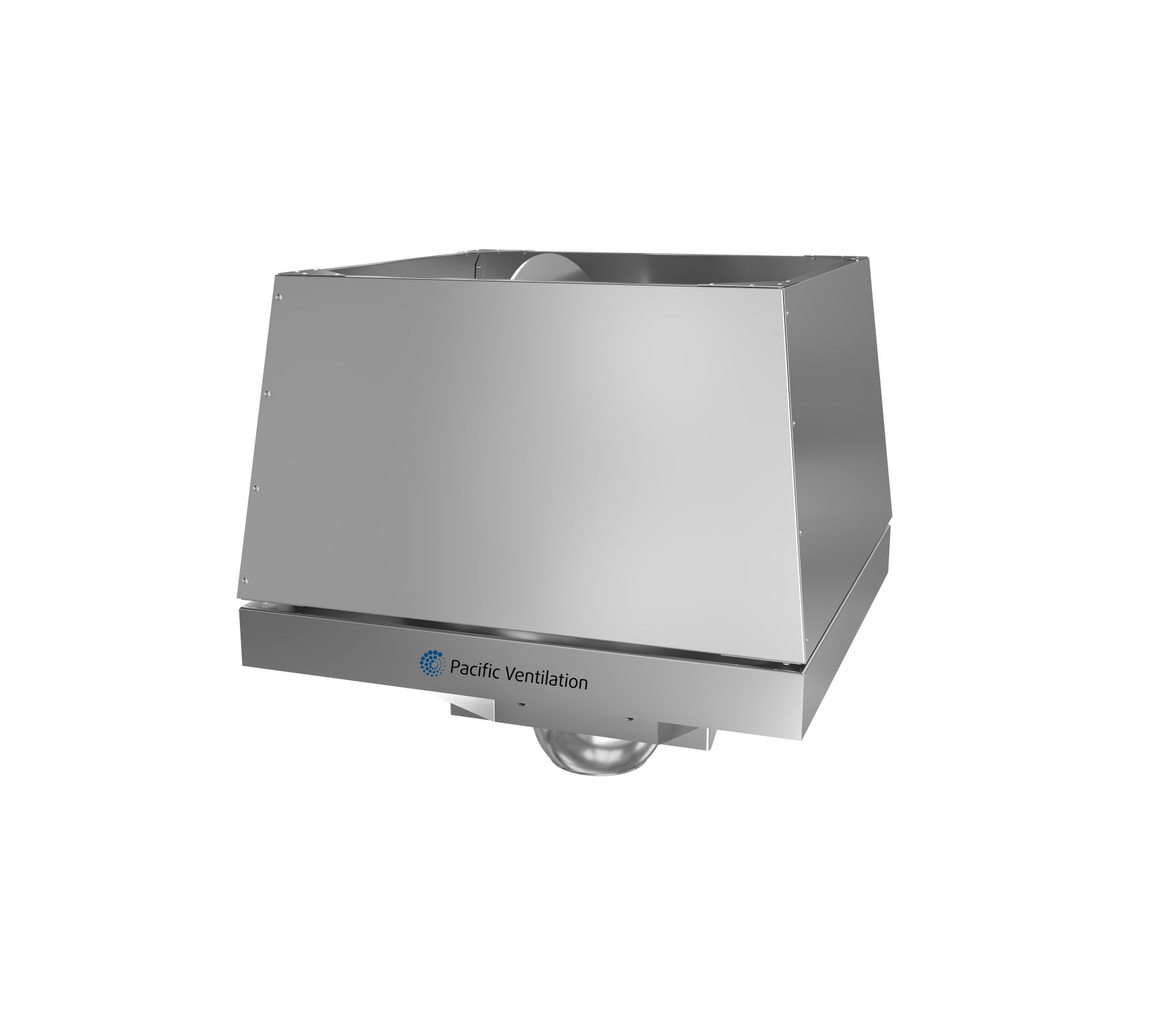

VD Roof fans

      Roof mounted adjustable pitch axial fans

      • Bases for all models are galvanised steel

      • Wind bands and shutter flaps are manufactured from galvanised steel

      • Flap mounting mechanism is designed to prevent water leaking into the fan

      • Special materials and finishes are available for adverse environments and special circumstances

      • Available in optional Colorbond™ colours

      Smoke Spill Compliant

      Units comply with AS4429 and AS1668 pt1 for Smoke Spill applications.

      Impellers

      Aerofoil adjustable pitch impellers are available in various materials, including pressure die-cast aluminium, injection moulded glass reinforced polypropylene (GRP) and nylon. Impellers are balanced to ISO1940 Grade G6.3.

      Durability

      In addition to galvanised steel bases, wind bands, and shutter flaps, special materials and finishes are available for adverse environments and special circumstances.

      Design

      The flap mounting mechanism is designed to prevent water from leaking into the fan.


      The VD series is a highly competitive general-purpose roof fan range for extract ventilation.

      Specifications
      Bases for all models are of galvanised steel construction. Wind bands and shutter flaps are manufactured from galvanised steel. The flap mounting mechanism is designed to prevent water from leaking into the fan. Special materials and finishes are available for hazardous environments and special circumstances. Available in optional Colorbond™ colours.

      Testing
      Units comply with AS4429 and AS1668 pt1 for Smoke Spill applications. Rated fan performance has been determined by testing to ISO 5801: 2007. Fan sound data has been determined by testing to BS848 Part 2: 1985 or AMCA 300.

      Impellers
      Aerofoil adjustable pitch impellers are available in various materials, including pressure die-cast aluminium, injection moulded glass reinforced polypropylene (GRP) and nylon. Impellers are balanced to ISO1940 Grade G6.3.

      Motors
      Motors are of TEFC design. The motor enclosure features IP54 protection. Motor windings incorporate class ‘F’ insulation as standard, although class ‘H’ is readily available. Motor bearings are sealed for life and maintenance-free. Integral thermal overload protection is generally not provided and is the responsibility of the installing electrical contractor.

      Failure to provide thermal overload protection voids the warranty.
