SBD Duct Fans
Low profile centrifugal fan
Available in EC & AC
Non-return damper built-in
Fits in tight spaces
Can be mounted at any angle
Fitted with flex leads and plugs
Suitable for use with run on timer EC & AC
Great for small spaces
Ideal for commercial, residential and apartment ventilation where cavity space is limited.
Rated and tested

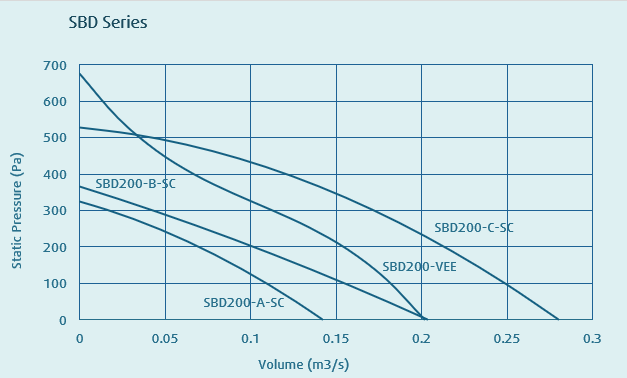

Rated fan performance has been determined by testing to ISO 5801: 2007. Fan sound data has been determined by testing to ISO 13347: 2004

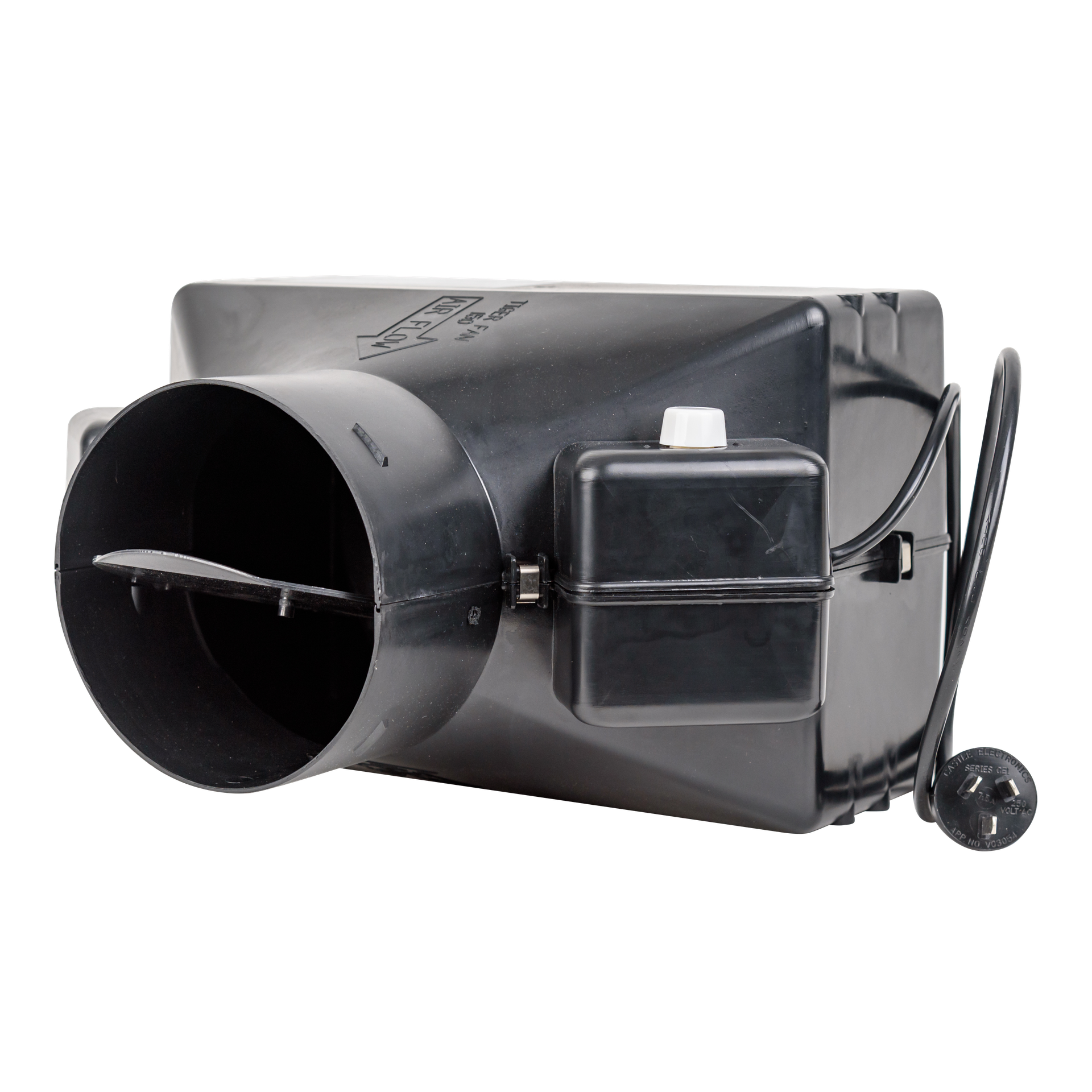

The SBD series is a low-profile, high-performance centrifugal fan designed for ducted ventilation systems.
Ideal for commercial, residential and apartment ventilation where cavity space is limited. The fans include integrated non-return dampers as standard.
The fans are fitted with a potentiometer dial control housed in a fly lead junction box. In addition, BMS or sensor 0-10V input can be wired on-site.
Wiring diagrams are available for download below or from our selection software.
