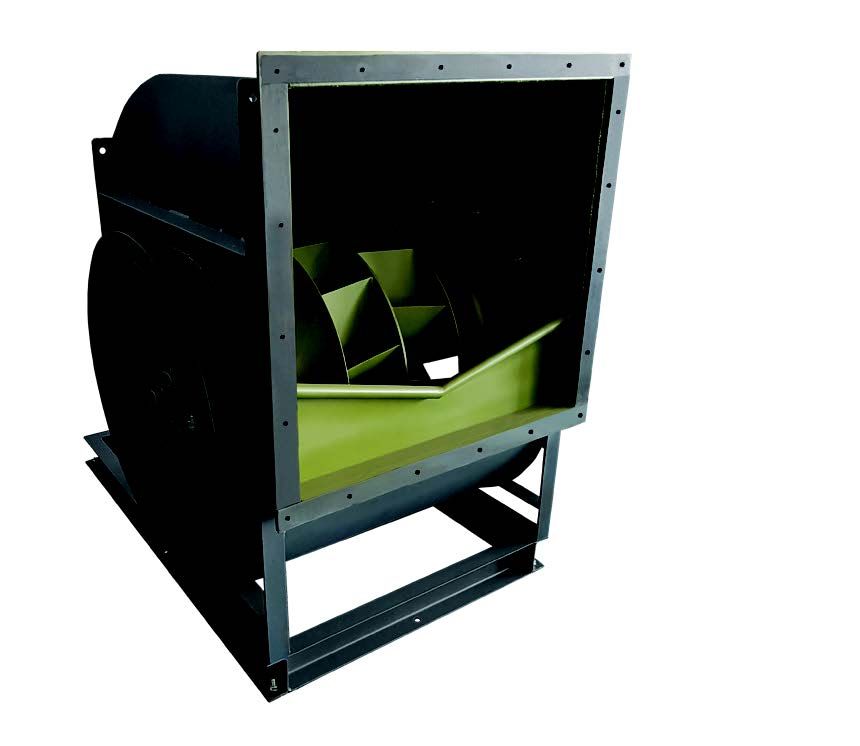

AWP Centrifugal Fans

      DWDI industrial blower fan with 2000+ options

      • AMCA-certified sound data

      • Drive guard and base frame included standard

      • Inspection hatches and drain plugs included standard

      • Fully welded, mild steel cases

      • Various coatings available to suit the conditions

      • Built to spec; fully modifiable

      Versitile

      Made from welded mild steel, using semi-universal construction, allows the discharge angle to be modified to suit a wide variety of car park design requirements.

      Compliant

      TEFC motors, compliant with the Australian MEPS standard

      Durable

      The AWP is made from fully welded steel with anti-corrosion coatings added to suit the application and location.

      Reliable

      Non-overloading power characteristic suitable for very light dust applications (e.g. the clean side of dust collector) where good efficiency is required. Can be used for high-pressure ventilation systems or where the system resistance could fluctuate. Normal discharge velocities are 1800-3000 feet per minute.

      Pacific Ventilation’s range of DWDI and SWSI centrifugal blower fans offers engineers the flexibility to choose the most suitable sizes and configurations to suit any site condition.

      With over 2000 variations of diameter, width and length type, specifications are virtually tailor-made to individual needs.

      Casings are made of mild steel, welded, and many are of semi-universal construction, allowing the discharge angle to be modified to suit customers’ requirements.

      Additional features and ancillaries can be supplied on request, such as split casings, carbon steel and stainless steel impellers. Customers are requested to specify at the time of ordering the ancillaries required.

      • Flexible inlet connections

      • Anti-spark features

      • Inlet mating flange

      • Inlet guard

      • Drive guard (standard)

      • Anti-vibration mounts

      • Drain point

      • Fan outlet guard available

      • Flexible outlet connection

      • Cooling fan

      • Bearing cover

      • Motor cover

      • Variable inlet vane

      • Outlet dampers
