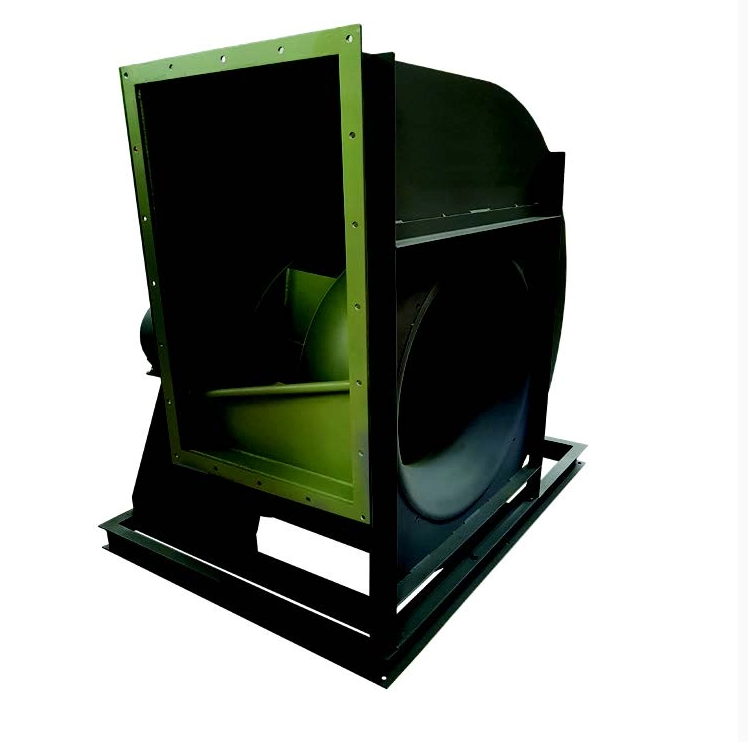

ASP Centrifugal Fans

      SWSI blower fan with over 2000 variations

      • AMCA-certified sound data

      • Drive guard and base frame included standard

      • Inspection hatches and drain plugs included standard

      • Fully welded, mild steel cases

      • Various coatings available to suit the conditions

      • Built to spec; fully modifiable

      Certified

      The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

      Modifiable

      Casings are made of mild steel, welded, and many are of semi-universal construction, allowing the discharge angle to be modified to suit customers’ requirements.

      Efficient

      Non-overloading power characteristic suitable for very light dust applications (e.g. clean side of dust collector) where good efficiency is required.

      Reliable

      Good for high-pressure ventilation systems or where the system resistance could fluctuate.

      Pacific Ventilation’s range of DWDI and SWSI centrifugal blower fans offers engineers the flexibility to choose the most suitable sizes and configurations to suit any site condition.

      With over 2000 variations of diameter, width and length type, specifications are virtually tailor-made to individual needs.

      Casings are made of mild steel, welded, and many are of semi-universal construction, allowing the discharge angle to be modified to suit customers’ requirements.

      Additional features and ancillaries can be supplied on request, such as split casings, carbon steel and stainless steel impellers. Customers are requested to specify at the time of ordering the ancillaries required.

      • Flexible inlet connections

      • Anti-spark features

      • Inlet mating flange

      • Inlet guard

      • Drive guard (standard)

      • Anti-vibration mounts

      • Drain point

      • Fan outlet guard available

      • Flexible outlet connection

      • Cooling fan

      • Bearing cover

      • Motor cover

      • Variable inlet vane

      • Outlet dampers

      Download ASP information
