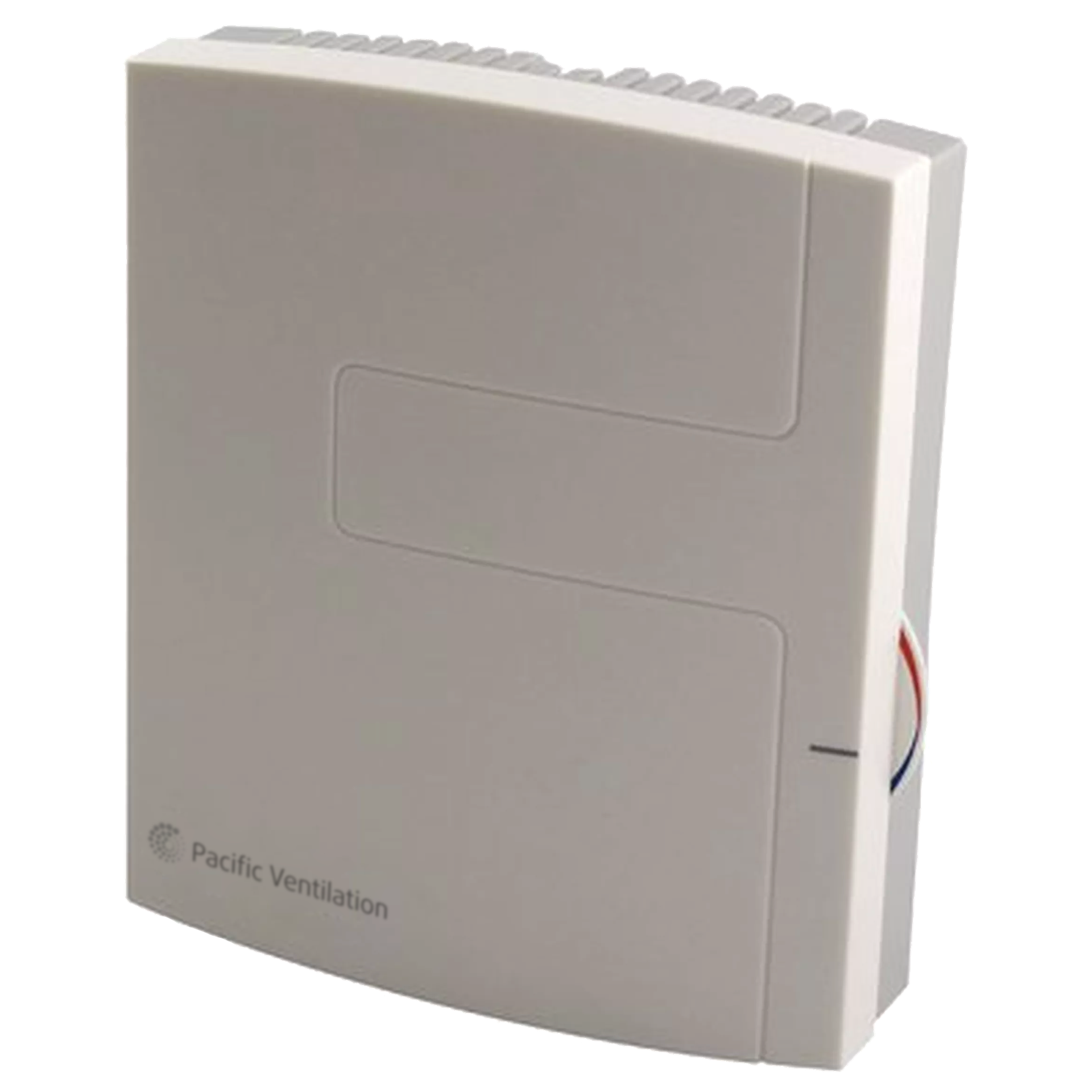

ECBasic
Temperature controller suitable for a range of settings
Easy to install, connect, and set up
Simple controls
Adjustable set point
Built-in sensors
Temperature settings from 5°C to 30°C
Operating temperature -20°C to 50°C
Enclosure class - IP30
Weight - 0.147 kg
CO2 measurement - 0 to 2,000 ppm
Uncomplicated
Being simple to install, connect and set up, EC Basic provides straightforward demand control in a range of settings.
Adaptable
EC Basic controllers can be used with all 220v single-phase and 380v three-phase EC fans.
Certified
The EC-Basic controller meets the highest standards of safe operation and conforms to CE marks EN 60730-1, EN 61000-6-3, and EN 61000-6-1.
Versitility
Available in the following variants:
EC-Basic-CO2 and temperature
EC-Basic-H humidity
EC-Basic-T temperature
EC-Basic-U universal 0–10V
The EC-Basic controller has been designed for simple and effective temperature demand control in a range of settings.
It can be used with all 220V single-phase and 380V three-phase EC fans and has been intelligently designed for easy installation, maintenance and replacement.
Simple controls make operation easy. EC-Basic controls feature a built-in sensor. The controller compares room temperature with an adjustable set point and regulates a 0 - 10v output signal that is applied to a ventilator with a PI algorithm in direct or reverse action based on the jumper JP1 setting. The range for knob set point is from 5°C to 30°C
The EC-Basic controller conforms to CE standards EN 60730-1, EN 61000-6-3 and EN 61000-6-1. Available in different sizes, options in the range are suitable for CO2, temperature, and humidity. A universal option is also available.
