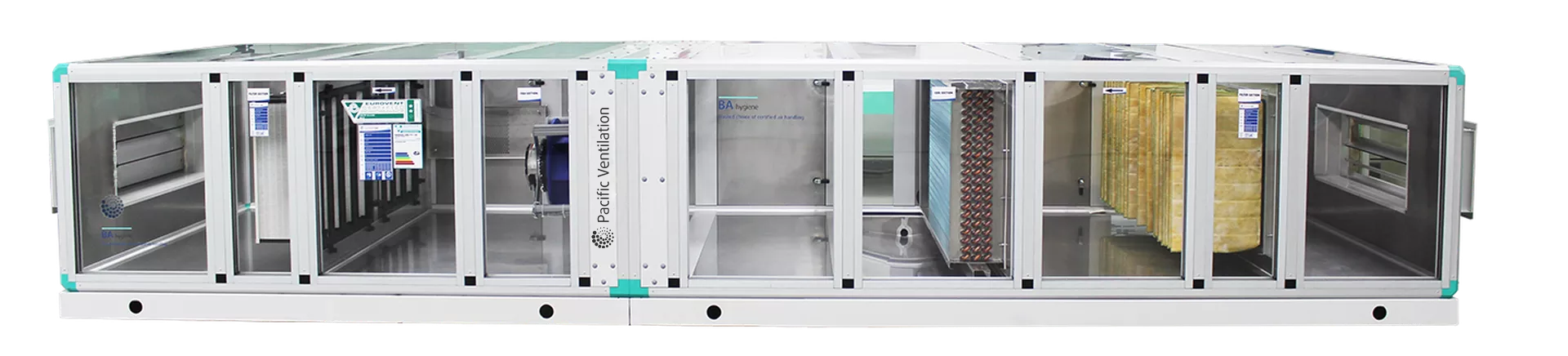

BA Hygiene Air Handling Units
Modular air handling unit with enhanced energy efficiency and certified by Eurovent for hygienic applications
BA Hygiene units can handle airflows from 1,000 to 17,800 CMH
Ideal for medium to high air pressure systems with static pressure up to 2300 pa
Eurovent certified for hygienic applications
Available with options for integrated controls for simple, plug-and-play start-up
Enhanced thermal transmittance
Modular and extremely adaptable
Pacific Ventilation BA units are available in different sizes offering a flexible solution to be used in various applications, from small office premises to larger industrial applications.
A trusted choice for hygienic applications
BA Hygiene is built according to international standards and certified by Eurovent for hygienic application. The Eurovent HAHU Certification includes stringent, annual factory and selection software audits.
Smart integrated control technology
The BA Hygiene is available with a pre-installed, preconfigured and fully integrated control system. The system is preloaded with parameters to simplify field commissioning. Inspired by smartphones, the accessible controls enable a seamless user experience.
Enhanced energy efficiency
BA Hygiene units have enhanced thermal transmittance compared to other models within the range. Combined with low energy consumption components and controls the units can offer energy savings of up to 40%.
Specially designed and certified air handling units for...
Operation Theatres
Intensive Care units
Critical care units
Clean Rooms
Office Buildings
Manufacturing facilities
BA Hygiene is available with improved thermal transmittance combined with low-consumption components and integrated controls, offering optimal operations and savings for years to come.
Are you aware of what happens inside your air handling units?
Growth of microorganism colony on non-metallic parts over the period of operation
Metallic parts get corroded
Dust and foreign materials get accumulated during construction and remain there
Does not have sufficient space for cleaning its components
High leakage rate
Inefficient thermal bridging
Low casing strength
Built to international standards and certified by Eurovent for hygienic application (HAHU).
What is Eurovent HAHU?
The Eurovent HAHU certification sets a new industry standard for the following reasons:
Easy to understand:
Innovative 1-3 star rating that accounts for different hygienic requirements.
Proven hygienic performance
Stringent, annual factory and selection software audits by Eurovent Certita Certification as an accredited third party.
One standard, less confusion
Eurovent HAHU combines the requirements of multiple hygienic standards (e.g. VDI6022-1, DIN1946-4, HTM) in a single programme.
Compliance with international standards
In addition to EN -13053 & EN – 1886, BA Hygiene units conform to the following international standards:
EN ISO 846 “Evaluation of the action of microorganisms” for all non metallic material.
EN 10088-3 Standard 1.4301 / AISI 304 for “Stainless steel”.
EN 1993-1-2 Eurocode 3: “Design of steel structures” for corrosion resistance.
DIN 1946/4-6.5.1 for aluminium and coating properties.
EN 779 &EN 16890 for medium and fine filters.
EN 1822 for high-efficiency filters.
EN ISO 12944-2 for corrosion resistance.
ASTM B 117 for salt spray test.
Get SMART. Get BA.
Modular AHU with Advanced Reliable Technology
The BA Plus Smart units are available with a pre-installed, preconfigured and fully integrated control system. It is a user-friendly system where functions and parameters can be selected from the inbuilt Human Machine Interface (HMI) of the controller or of the Building Management System.
The operating data, set points, alarms, operating status and time settings are displayed in the controller. The control system is preloaded with design temperature, relative humidity, pressure drops, time settings and control sequence to simplify field commissioning, all of which can be modified according to need.
Inspired by smartphones, the accessible controls enable a seamless user experience within the robust design.
All units are available with the option to integrate smart, in-built controls, which, combined with the components, offer even greater energy savings of up to 40%.
